Time for a small update yet again.

I sleeved the pump.




Because I'm using Tygon R3603 as tubing in the system I need to drill out all my fittings to 11mm to accomodtate this thicker type of tube. I bought a huge drillbit which I ended up not using because it trashed the fitting.


Instead I found this strange bit and it turned out to work like a dream

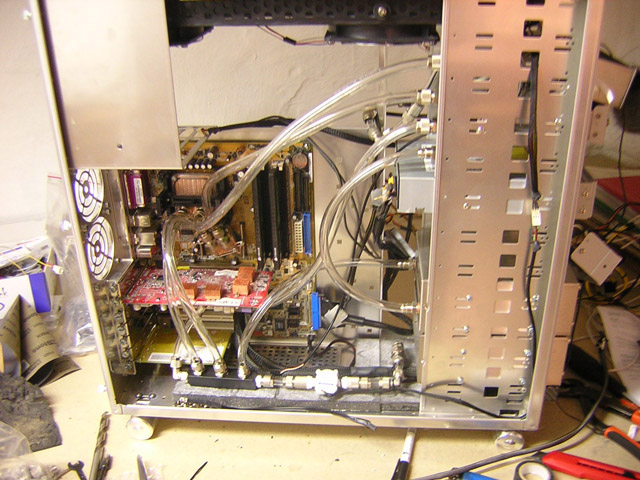

After drilling the fittings I started mounting the pump and tubing.


I may have run into a bit of a problem because I don't know if my VFD will fit in the planned slot in front of the res because of the tubing that I didn't really take into account when planning this thing, but I guess we'll see about that


And from the rear (not sure if the tubing should run like this though)


That's it for now but hopefully I can get some more work done soon.
Thx for reading

wow great job so far. but man thats gonna be a tight space with all the tubes in that area. i hope you dont get any kinks in the piping. good luck with the rest!

Finally it's update time

First of all I want to say that I'm sorry for not updating in a while. The reason is that me and my fiancé are moving to Los Angeles (I'm going to work and look for a Computer Science related internship in the area while my fiancé is studying at Whittier College). So that's what I've been doing for the last couple of months and that's why I haven't been updating. I've also realised that I haven't taken photos of a lot of the progress, oops. Anyways, enough babbling!

Let the modding commence :dremel:

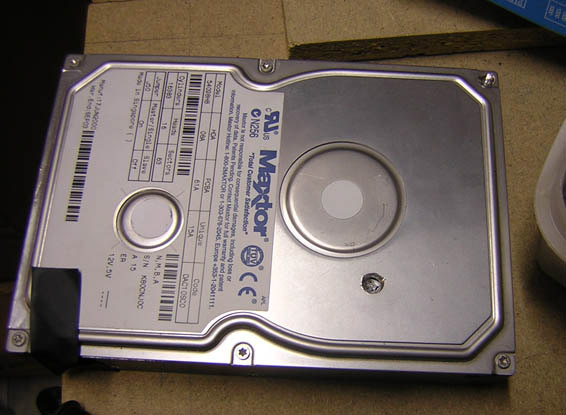

First of all and completely irrelevant i had an old broken Maxtor drive lying around so I figured I'd drill a hole into is to see what it looked like.


Ok, enough of the boring stuff.

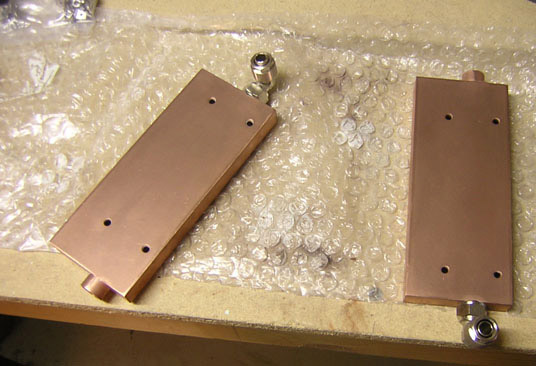

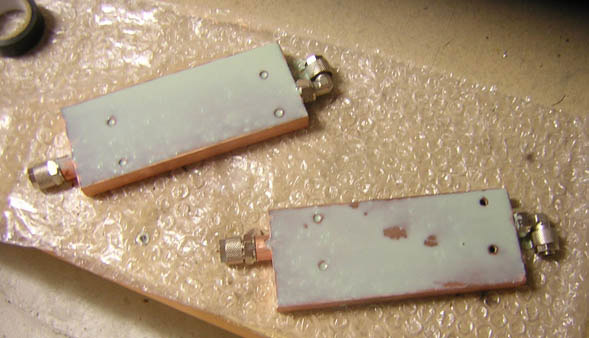

I decided to polish the HDD blocks since they where outrageously scratched and not very nice at all
So I sanded them down with a few different types of sandpaper (from 240 up til 600) then applied some polishing goo


and polished them with my trusty Dremel

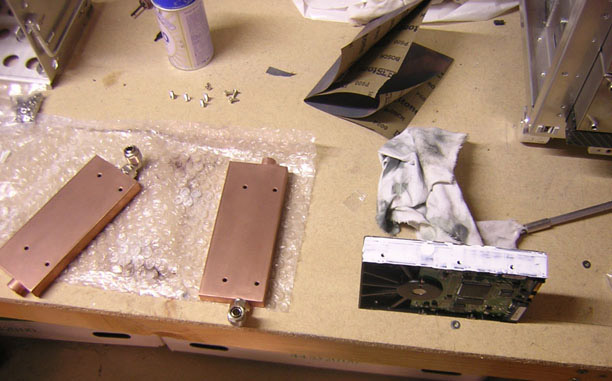

applying some creamy thermal compound to the HDD's

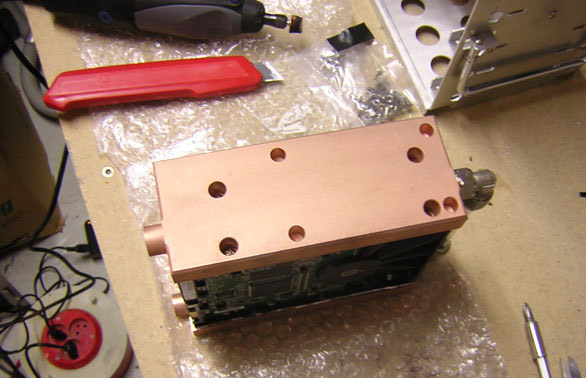

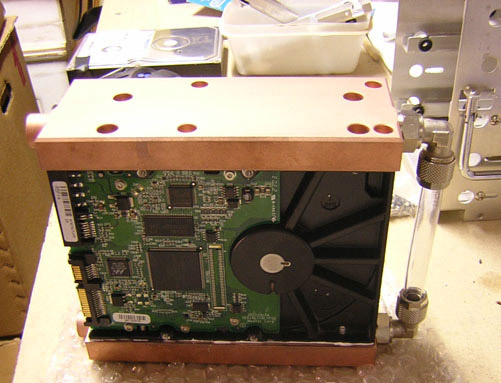

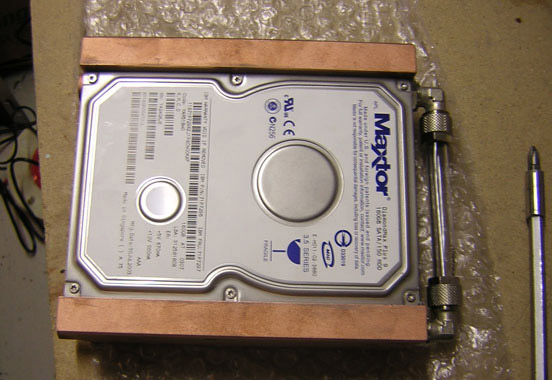

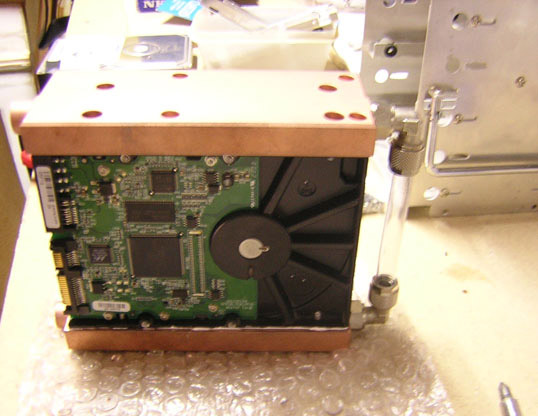

attaching blocks to HDD's


another angle


another


my sweet dual 160GB maxtors. I know people complain a lot about maxtor drives but I've never had a problem with one. Maxtor Fanboy in da house


I decided that just because it was on the back of the case it shouldn't go unnoticed. So I thought I might as well spiffy the backside up as well.
Regular 120mm cover plate

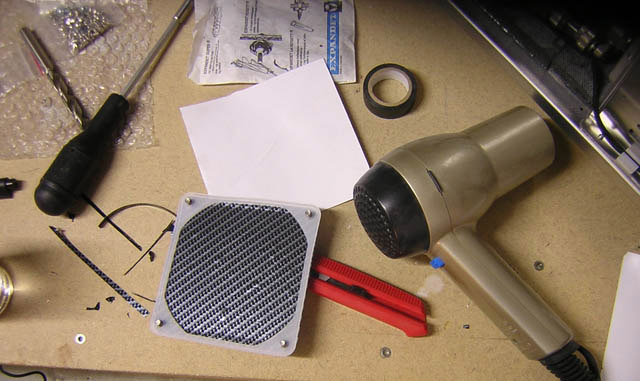

Cover plate covered in carbon vinyl on both sides with a 120mm fan silencer on the mounting side (the airbubbles you can see need to go).


finished cover plate mounted

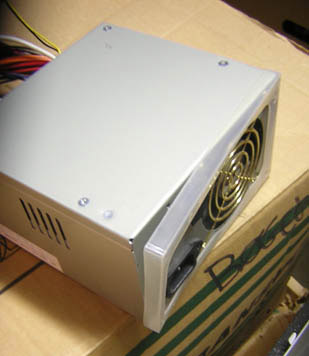

PSU silicone silencer mounted (shhhh!)

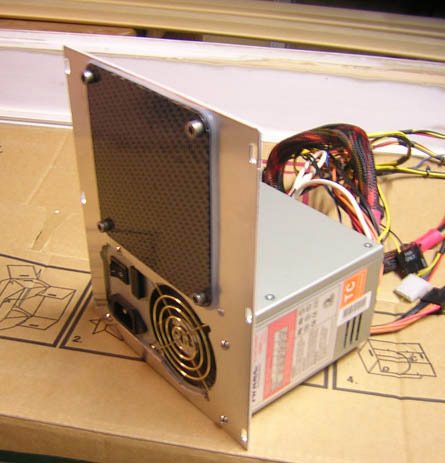

PSU attached to mounting plate


another angle


more to come in a sec

ok! on with it

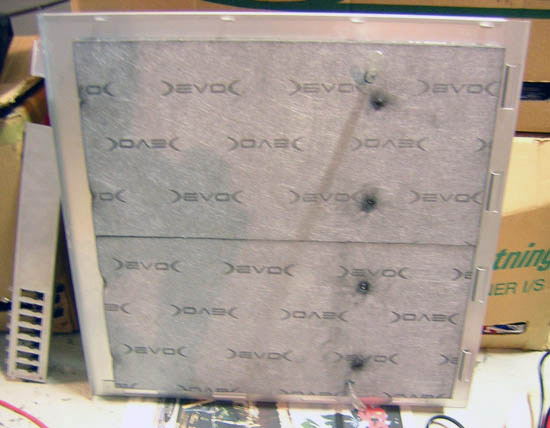

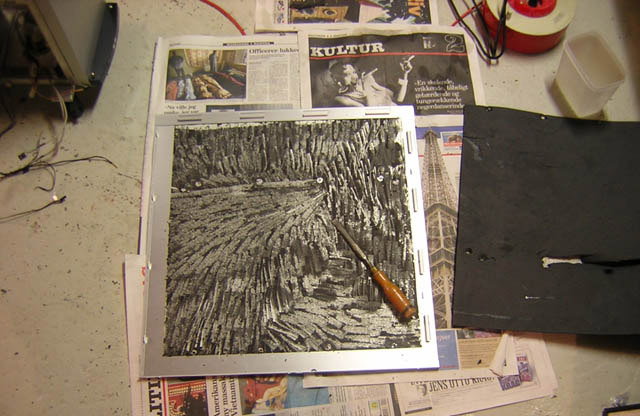

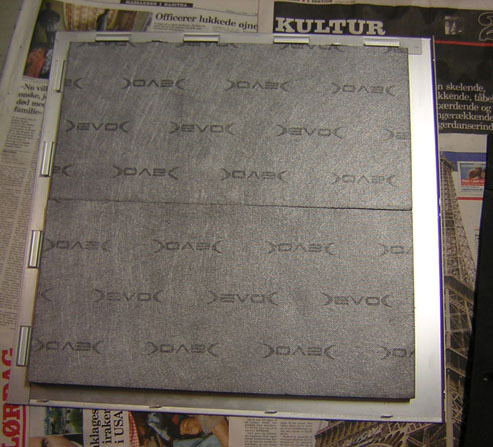

Removing old silencing foam from case side


New Noise Blocker silencing foam mounted

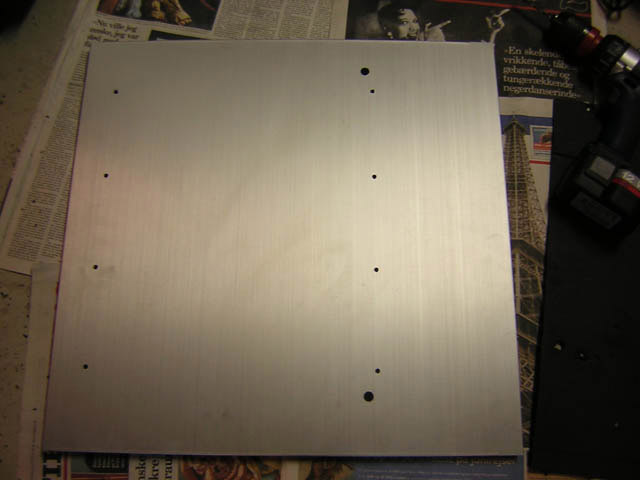

Holes for Innovatek Konvekt-O-Matic radiator drilled

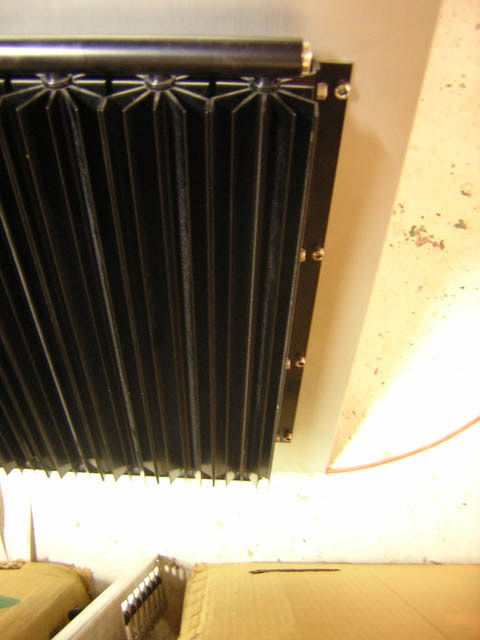

Tubing and radiator mounted

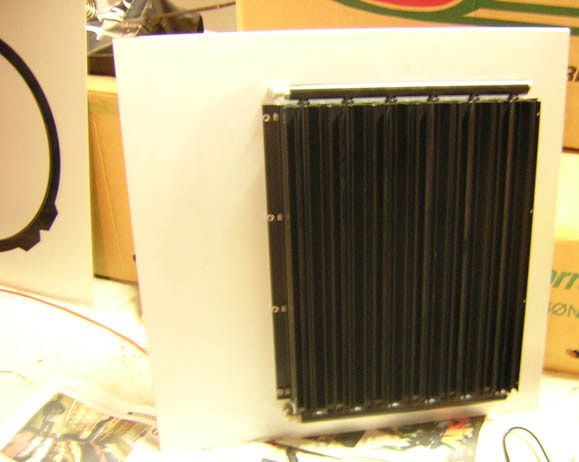

the other side

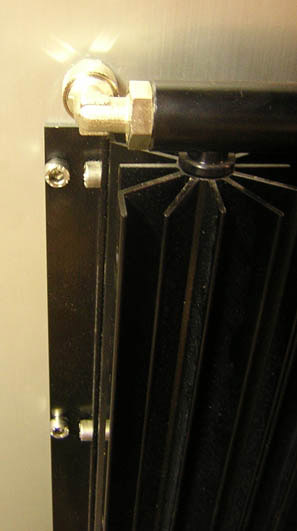

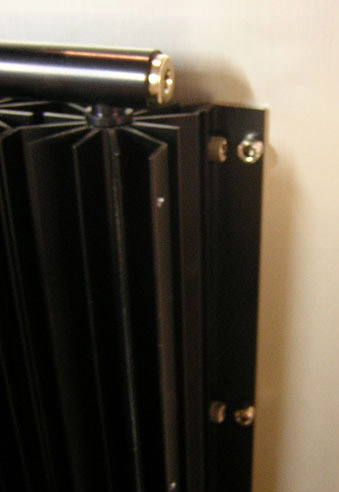

I drilled the mounting holes on the radiator out to accommodate my nice hex screws instead.


the other side

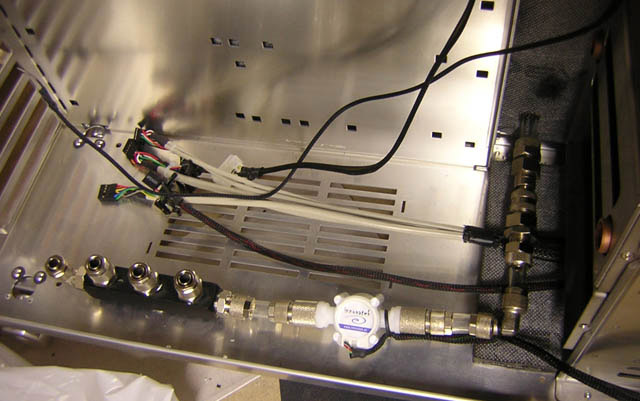

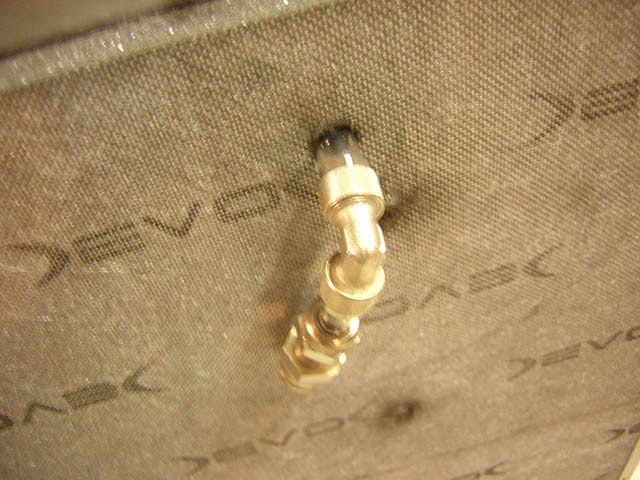

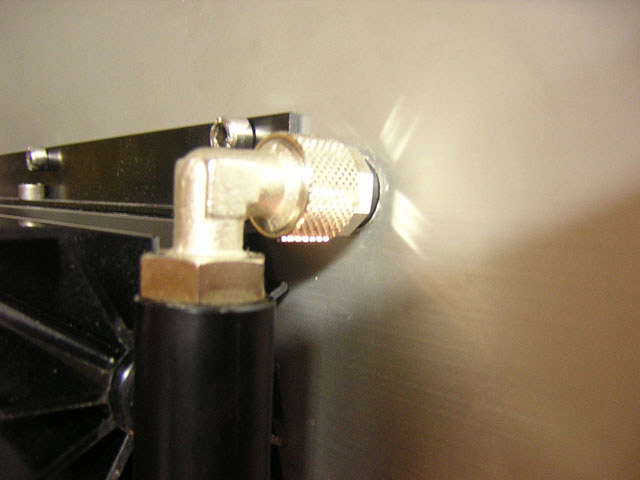

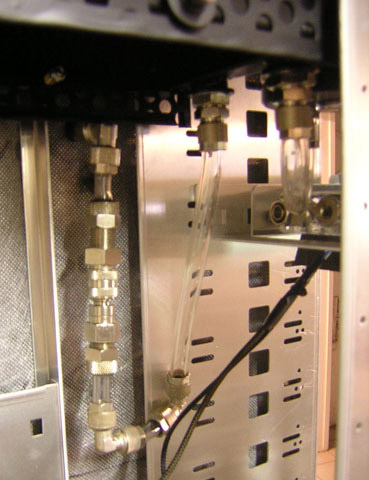

so I can remove the side of the case whenever I have too I've mounted quick release couplings to the side.

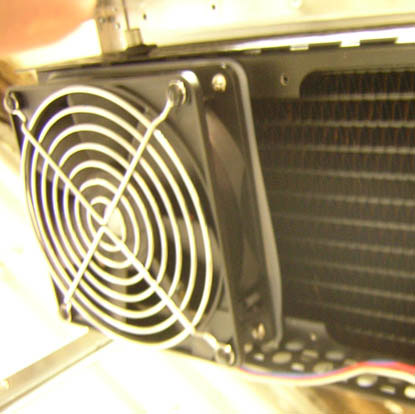

fans mounted with silencing silicone

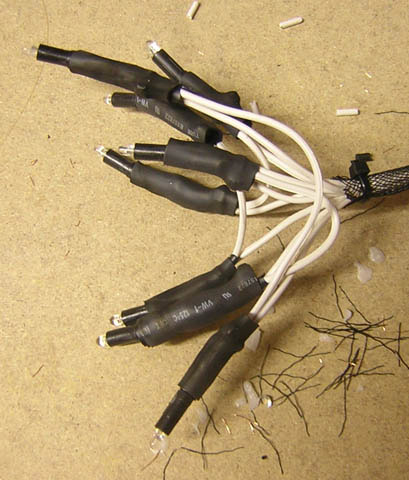

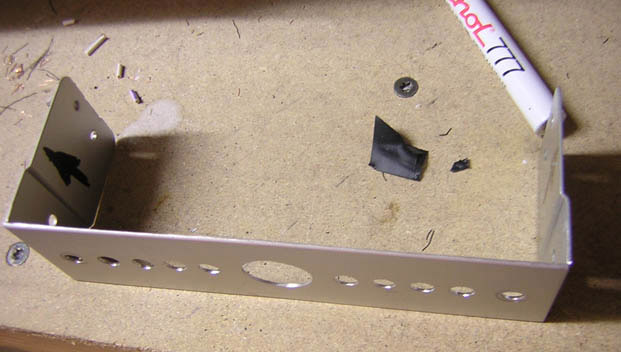

finished the status LED's

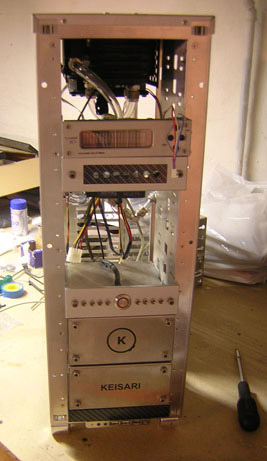

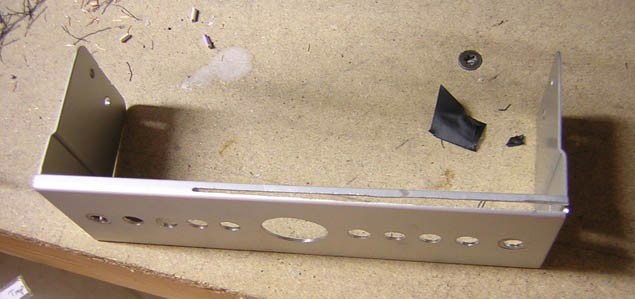

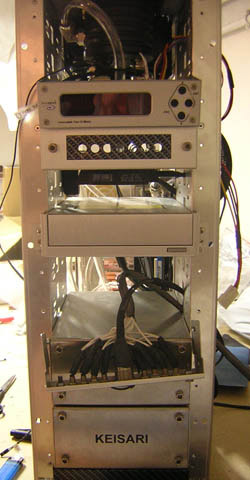

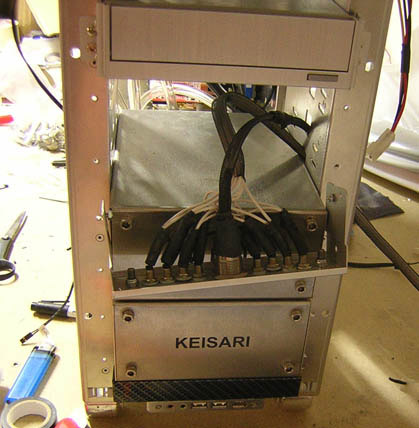

testmounting the front facias

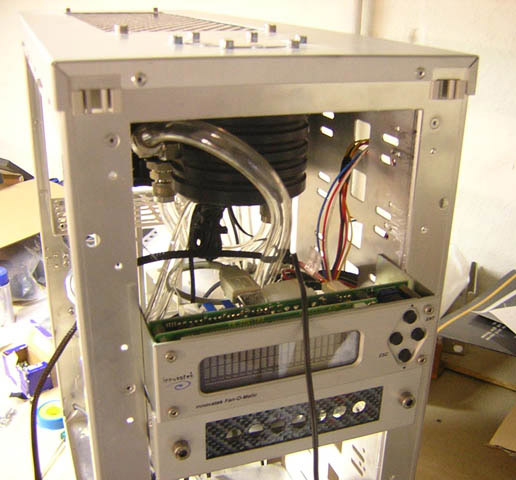

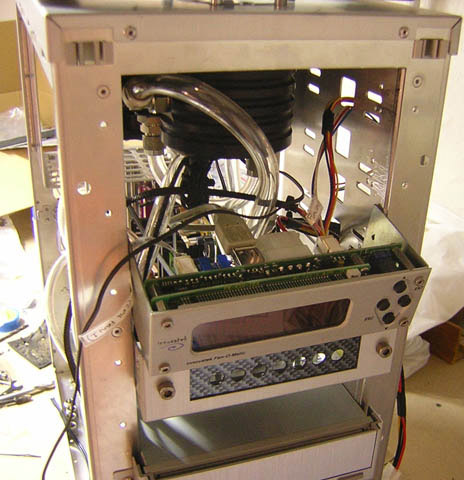

detail shot. I would've mounted the VFD higher but the reservoir is so close to the front edge so it's simply not possible.


more testing


even more testing


OOHHH NOOOOOO!! the facia I've made for my start button and status LED's doesn't fit. AAAArrggghhh!!!


more to come in 2 sec

gotta fix that facia!

Cutting it to fit with my lean mean Dremling machine


Now it should fit


I haven't taken any pictures of it but I've decided to mount the facia with carbon vinyl as well.

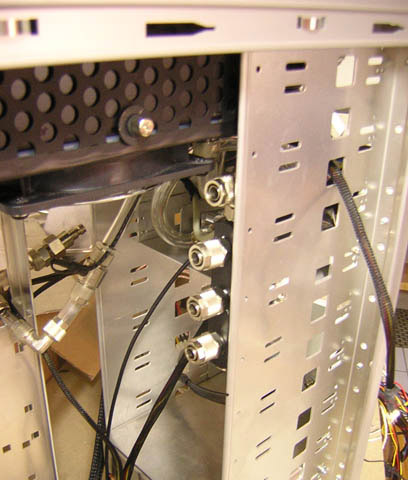

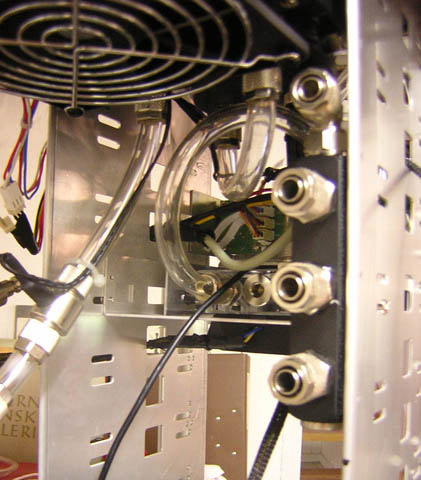

Mounting the manifold into the case


The side mounted and connected to the reservoir


The other manifold mounted

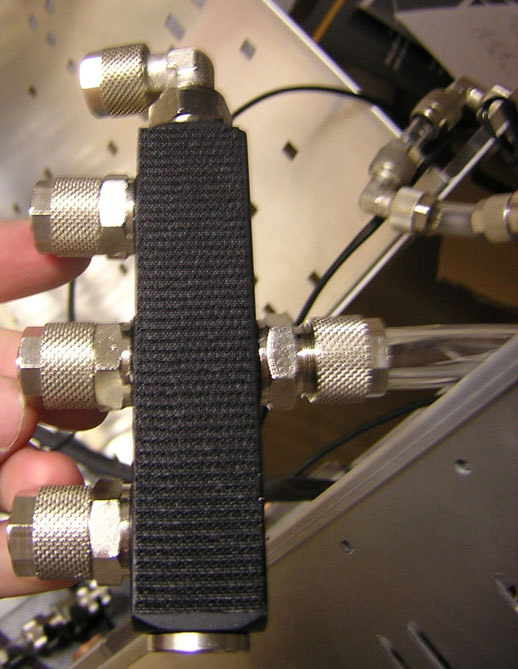

It's mounted via velcro so it's easier to fill the entire system when I get that far.


Another shot

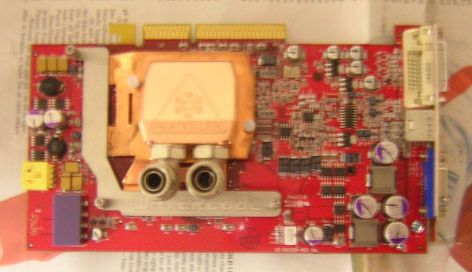

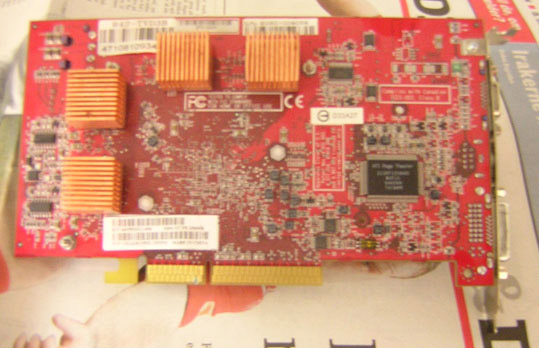

mounting the Watercool block onto the gfx card

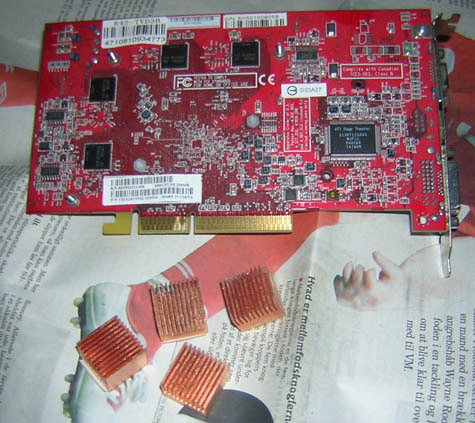

gfx without Revoltec ram cooling


gfx with Revoltec ram cooling

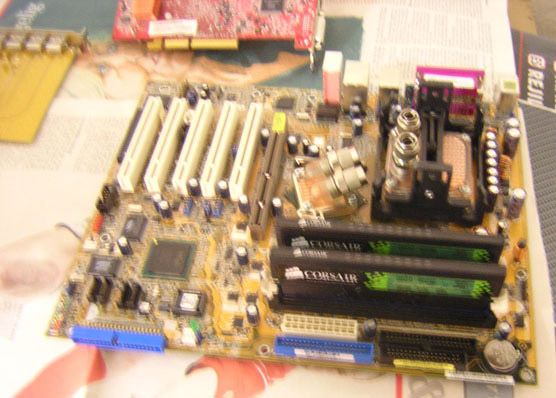

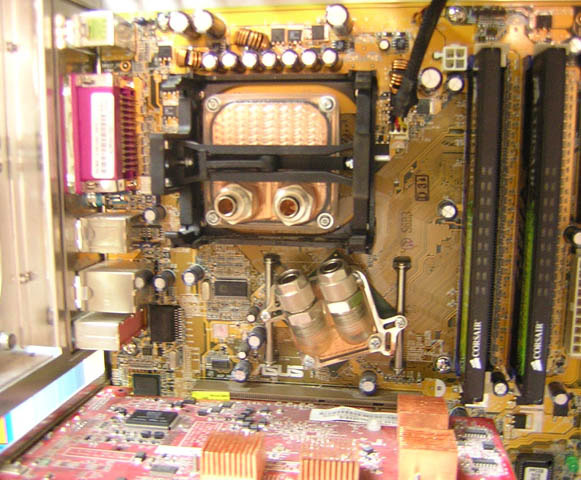

a blurry shot of the chipset block, CPU block and ram mounted onto the motherboard

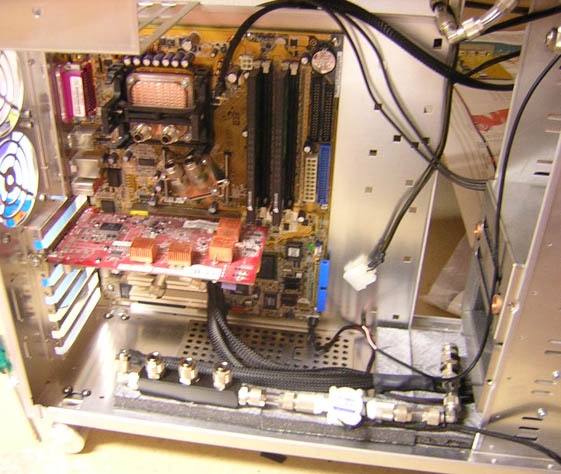

shot of the mounted motherboard. Notice that all wires have been sleeved in a sleek black


closeup of the chipset and CPU block


Tygon tubing mounted. I can't believe how flexible and awesome this kind of tubing is to work with. Loving it!!!


Time to fill her up! A good idea is to run the system for a couple of hours (for instance while leak testing) with 50% demineralized water and 50% Listerine to make sure that the entire system is germ free


Make sure to rinse the system thoroughly with pure demineralized water afterwards.

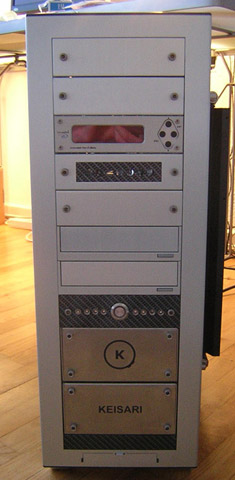

The system/project is finished

final shots to come

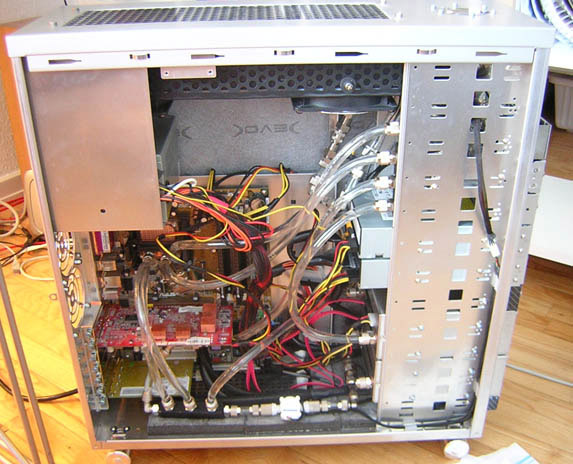

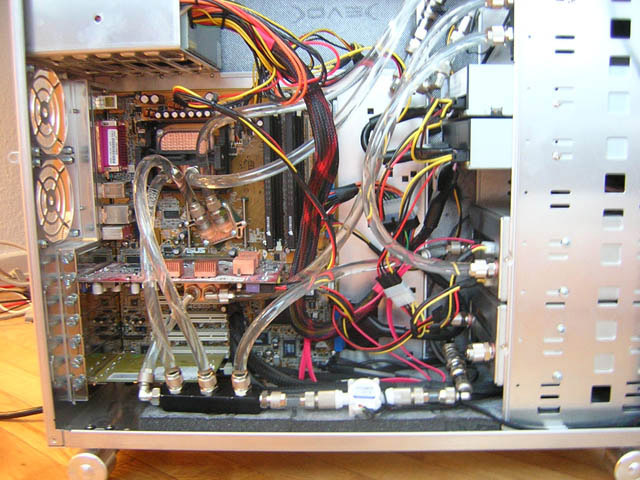

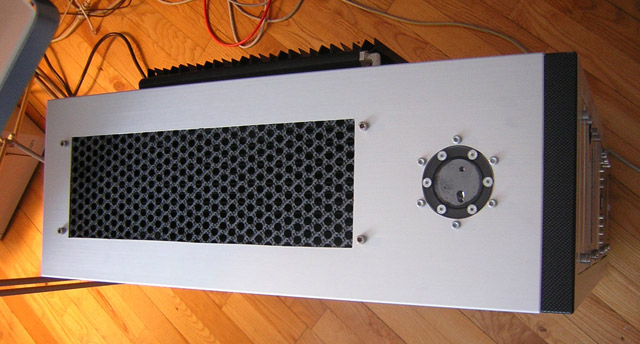

The final shots

I'm just goin to leave these as is but feel free to comment (I know cablework is not as tidy as it could have been but it's because I've had to settle with an Antec PSU instead of the Seasonic one I wanted).



















Thats it and that's that!

I hope everyone enjoyed the log and the progress (although slow at times)

I want to thank both the people and the users behind

Bit-Tech

PCApex

Gruntville

H2OKoeling

for their continuing support and encouragement throughout this project.

Any comments/remarks or ideas are always welcome and might be considered for my next mod so please, if you have anything, tell me.

As always I really appreciate you taking your time to listen to my ramblings. Thx for reading

dennis kayser aka Keisari
