You can buy them several places here in Denmark e.g. here
In the states I'm not sure but try fozencpu or something like that

No prob

coming out pretty good
9

Uuuupdate time!

First of all I gotta say thay my little quiz apparently was too easy. You guys are really into the He-Manage (I thought I was the only one, but guess not)

Well the correct answer is (drum roll please)

"Normally, he is the cowardly Cringer, but when Prince Adam transforms into He-Man, Cringer becomes the mighty Battle Cat."

Congrats to all of you that got it right. Sorry there are no prizes

Anywho how can you help yourself not loving the furry underwear? (dozing of imagining wearing furry He-Man underwear, ahhh)

Allrighty then! Time for the real update

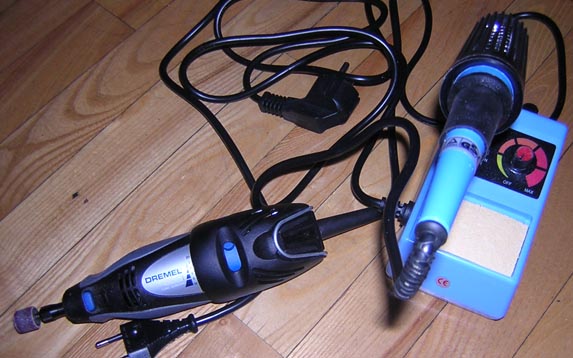

First I wanna show you my new toyz. Can't live without a Dremel and a soldering iron (not if you wanna mod at least)

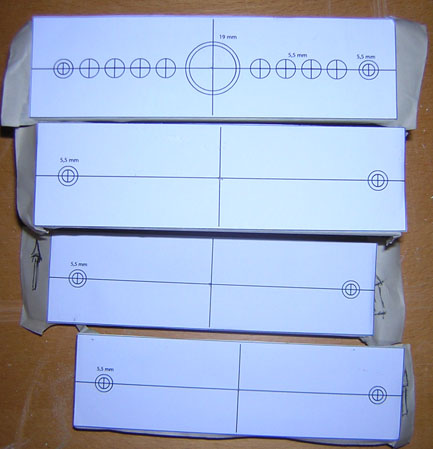

Faceplates taped (with masking tape) and the templates applied (with gluestick). Ready for drilling


Pilot holes drilled. Remember kids. Always drill pilotholes before drilling the real holes. Makes it much easier to correct stuff and makes sure that the big drill doesn't slip.

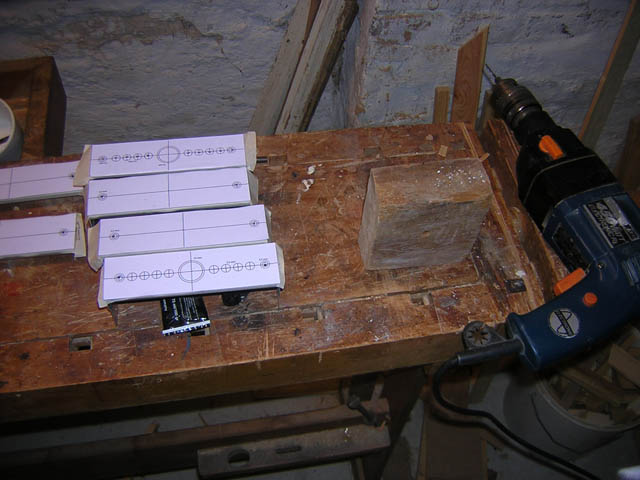

The drilling bench


Big holes drilled

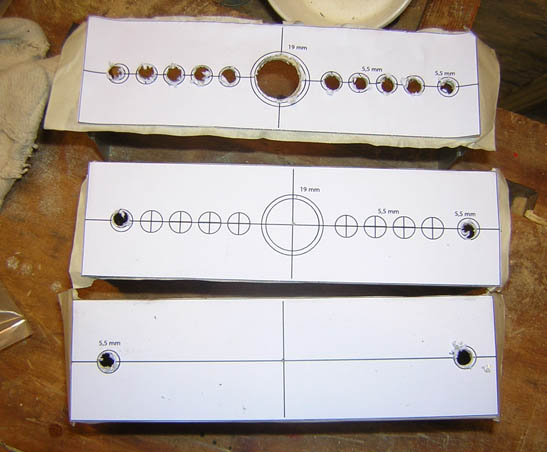

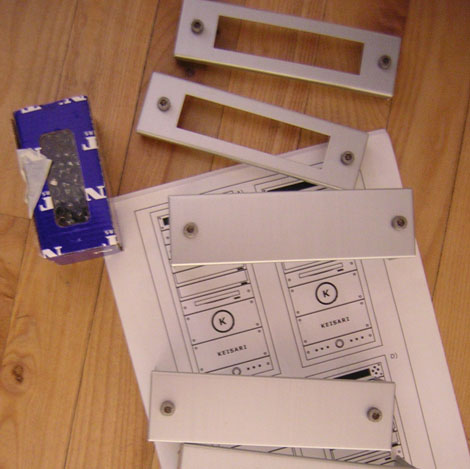

Some of the faceplates drilled and screwed. Ready to be mounted


Table de la soldering (it's hard to tell but the book in the left corner is what I'm reading for school right now. Basics of Compiler Design )


The Bulgin button I'm going to install (it's obviously red since my colorscheme is metal, black and red)

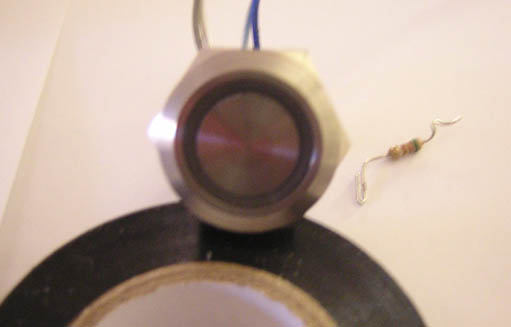

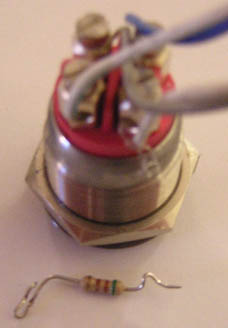

More Bulgin and the resistor thats going to be soldered to it (don't wanna burn it since those are expensive suckers)

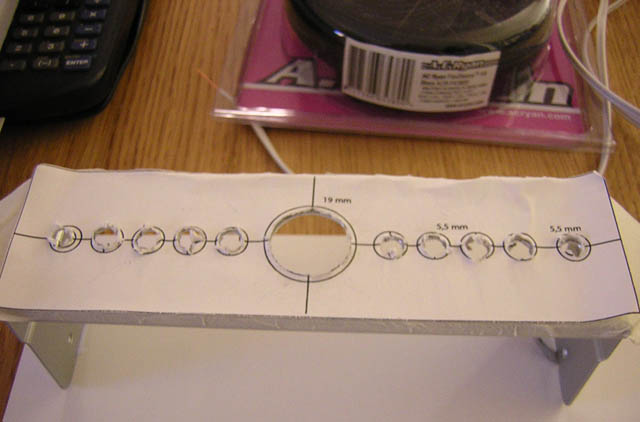

Button faceplate ready and edges sanded (don't wanna cut myself).

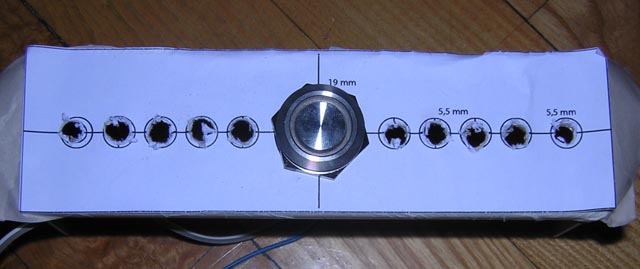

Testfitting the Bulgin

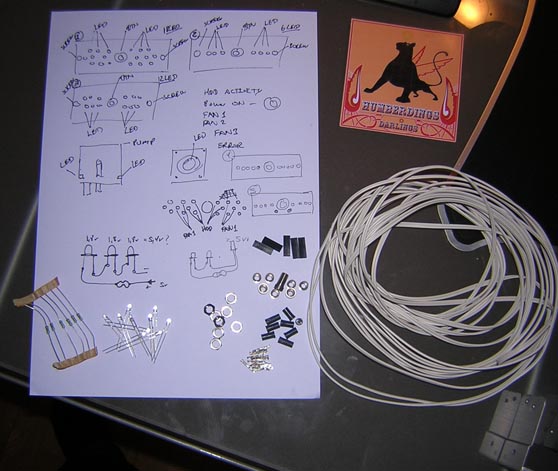

I've also bought a bunch of High-Bright LED's (3000 mCd), holders, wires and some other stuff.

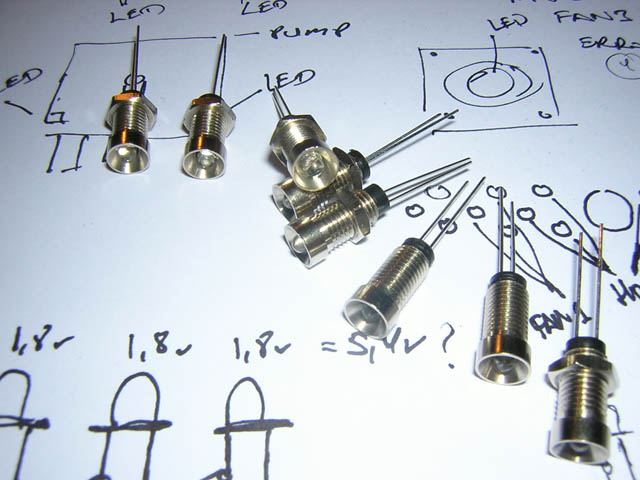

LED's assembled

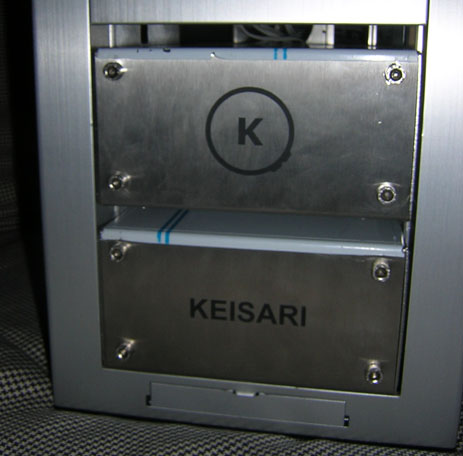

THE HORROR! I just testfitted my faceplates and came to realize that Lian Li (those m*****f******!) didn't stick to standard measurements. This means that there are two fairly big gaps between my DualStars (if you know what I mean ) The gaps are about 1 cm each. NOOOOO!!


So I guess I have to figure out a way to make some kind of filler for those gaps ( perhaps I should cut a faceplate into 1 cm strips and stick them in there?) Well I'll have to think about that.

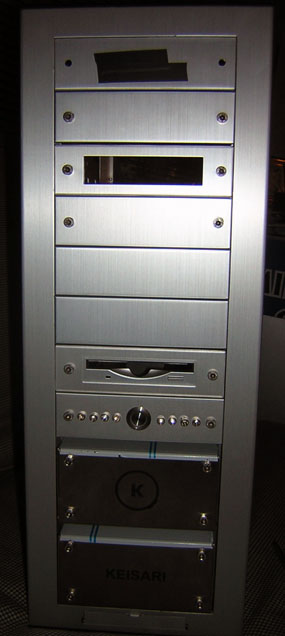

This is aprox. how it's going to look from the front when it's done though (LED's look off, but that's just because they haven't been screwed down yet and the bare faceplates are where the dvd drives are going to be)


Until next time.

Thx for reading

Thanks for the update.

Some solid progress. Sorry to hear about the lian li error. I'd go with a 1cm faceplate filler. A pain in the arse, but I'm sure you can make it look as if it was supposed to be there in the first place.

Have a great weekend!!

Nice precise work there -keisari...at least the parts you put together. Unfortunate about the spacing discrepancy, but I would take the effort to see of those Dualstars could be moved together, and a single 2cm filler would take care of the rest. Thin filler strips just wouldn't fit the clean look in my eyes.

Nice modding. You have some good ideas with this one. Hope to see you gettin' yo' groove on!

Quote: Originally Posted by hartigan Thanks for the update. Have a great weekend!!

No probs and thx

Quote: Originally Posted by Wordbiker Nice precise work there -keisari...at least the parts you put together. Unfortunate about the spacing discrepancy, but I would take the effort to see of those Dualstars could be moved together, and a single 2cm filler would take care of the rest. Thin filler strips just wouldn't fit the clean look in my eyes.

Thx. Already made the 2 x 1cm fillers and it doesn't really seem right so I think you might be on track with something there. I'm going to try that out tomorrow and we'll see how it turns out.

Quote: Originally Posted by Kratos Nice modding. You have some good ideas with this one. Hope to see you gettin' yo' groove on!

Thx. The groove is on (opens up control panel and turns groove on)

nice button/light thingy , good idea

lookin good keep it up.

Hi all!

Sorry for the lack of updates but I've had to deal with a lot of things lately.

Anywho

I have aquired a sponsorship by www.vcore.dk which I'm very happy about. It's a great store with some great stuff and very good customer service so check it out.


Well onto the modding.

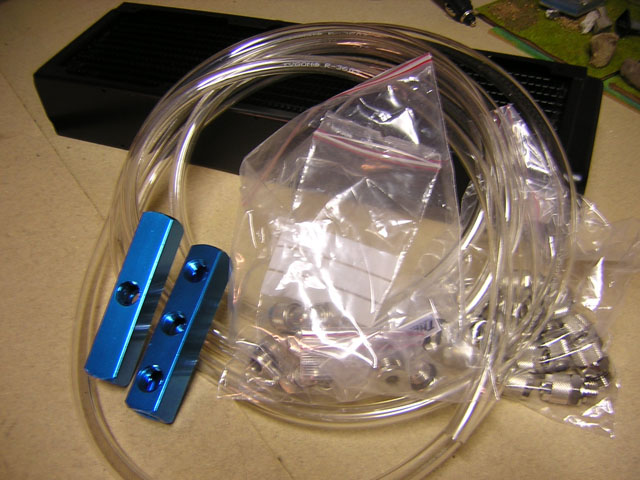

Some sweet things from www.vcore.dk

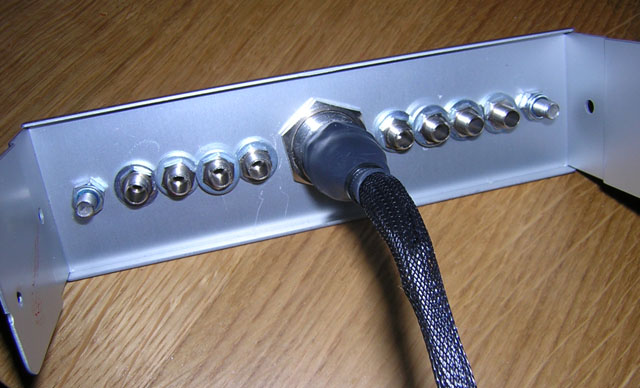

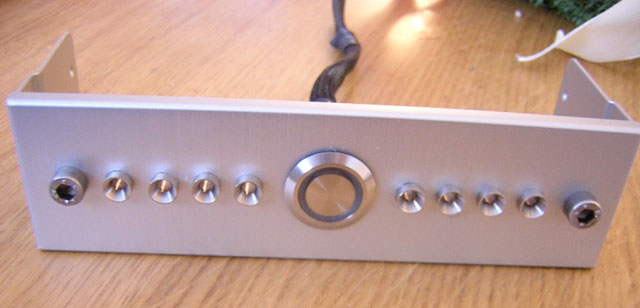

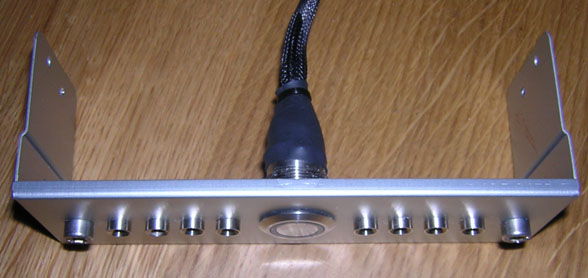

I finished the button faceplate and it turned out pretty good I think

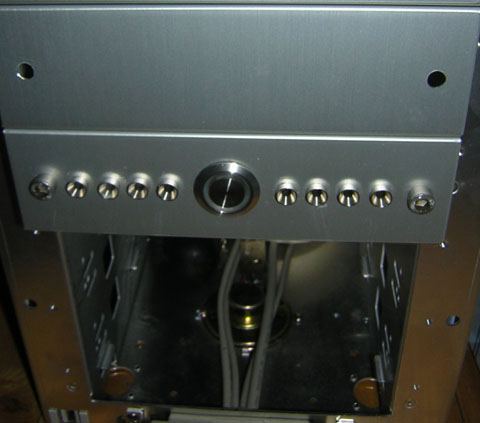

Testfitting the faceplate

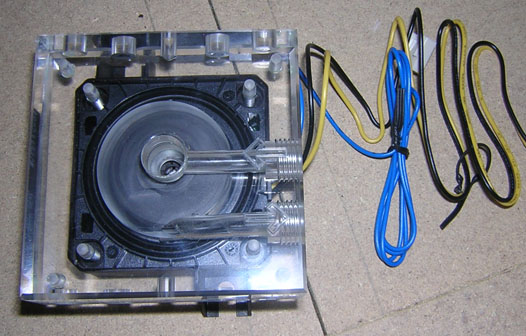

The Laing DDC-Pro pump

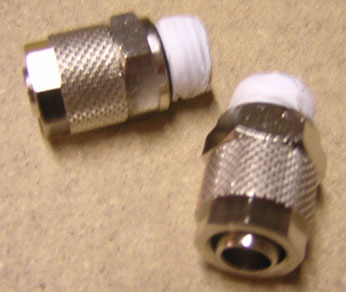

Putting PTFE teflon tape on all the fittings to make sure that nothing leaks

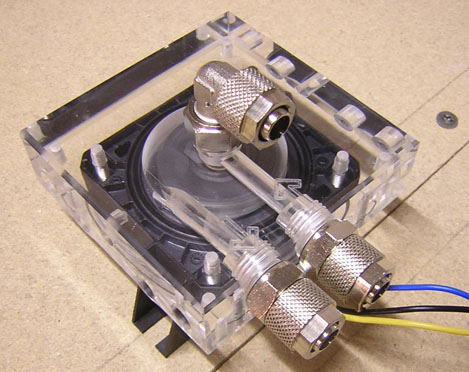

Fittings mounted on pump


To make the pump fit in the 3.5' bay we need to get rid of the middle plate like this

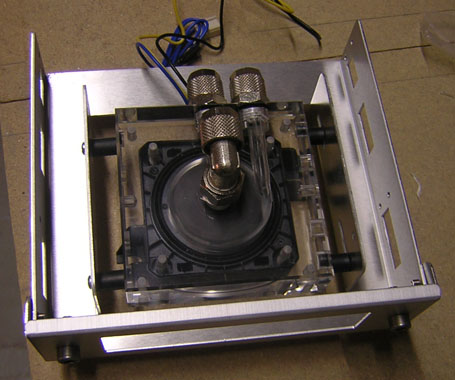

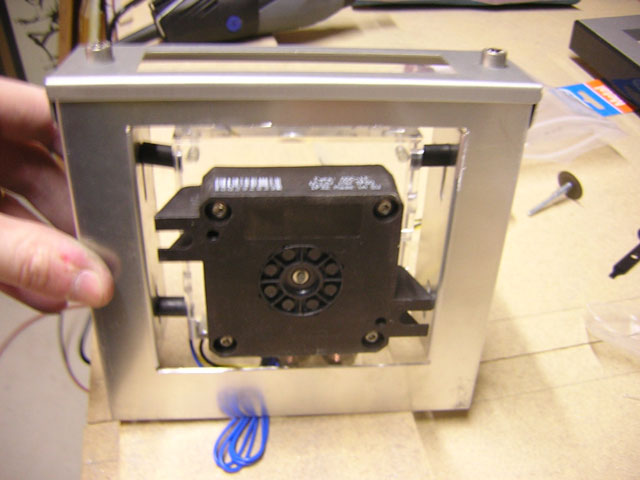

When the pump is installed it's going to look like this




I have yet to finish the plate that goes in front of the pump

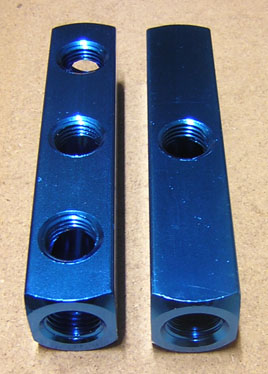

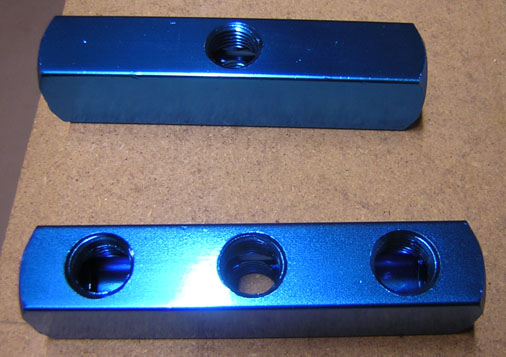

The manifolds



IMHO the blue color on the manifolds look horrid and doesn't go with the color scheme at all so they got to be sanded and painted

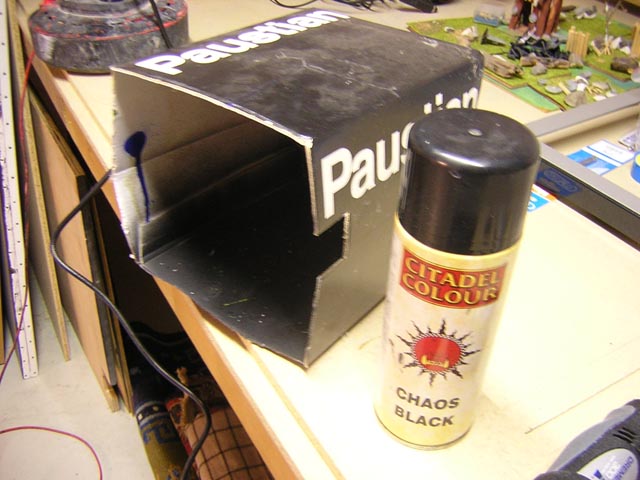

The spray box

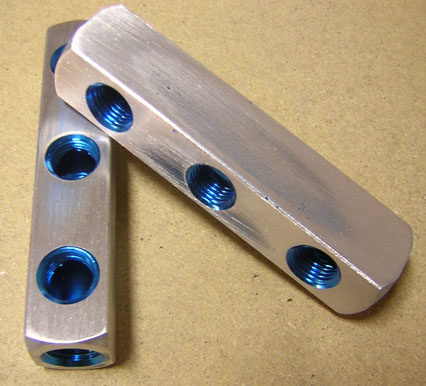

Sanded and ready for paint


To be continued

Thx for reading

I love this project, and this last update just emphisizes how sweet this mod is going to be. I can't wait for some more. Mod on!

Quote: Originally Posted by lafez I love this project, and this last update just emphisizes how sweet this mod is going to be. I can't wait for some more. Mod on!

ditto. I've been watching this since 11/19/05 when it started. Great stuff.


I love the "Chaos Black" spray paint in the last update post.

Thx guys!

Well here's your much needed fix (aka update). Albeit small, an update none the less

Allrighty then!

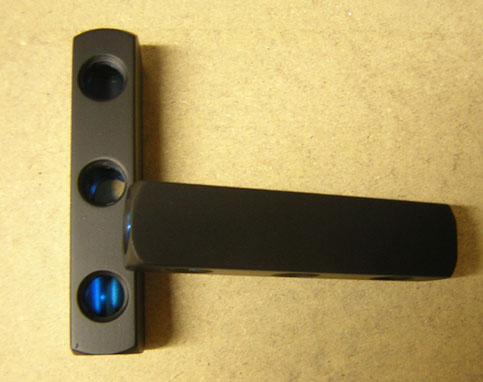

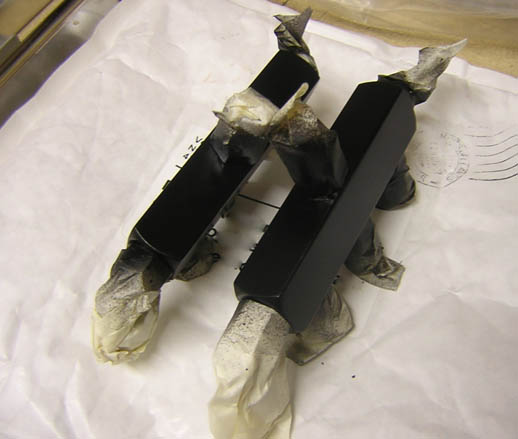

The manifolds painted (Chaos black, 4 layers)


The fittings didn't really mount very easily so after fighting with them I was forced to do some repainting

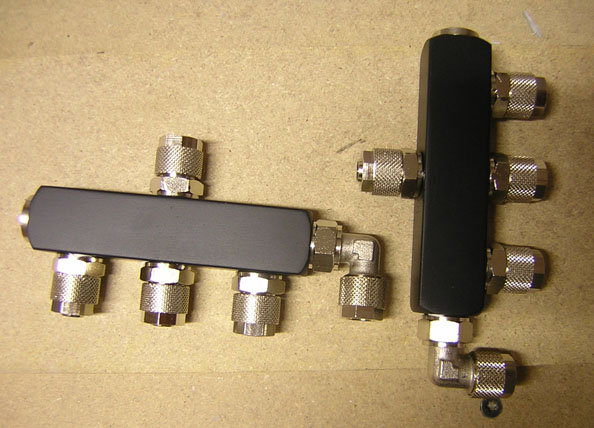

The finished manifolds

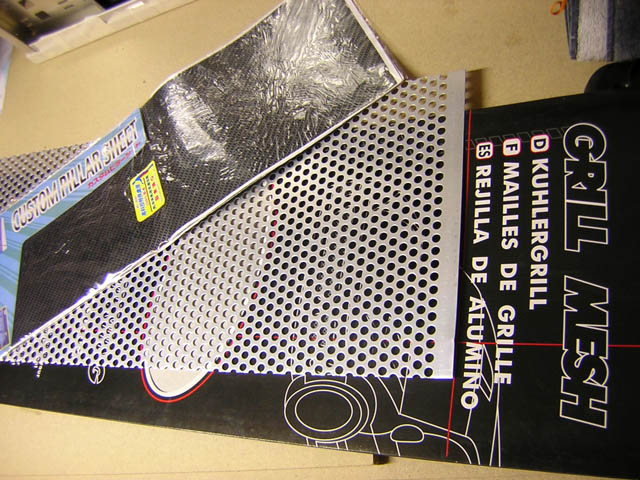

I went to the autoshop and got some nice stuff. Perforated front grill aluminium mesh and some carbon fiber vinyl

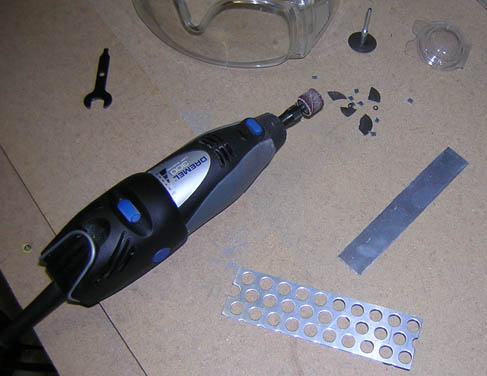

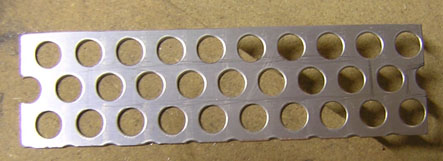

Cutting out a piece of the mesh

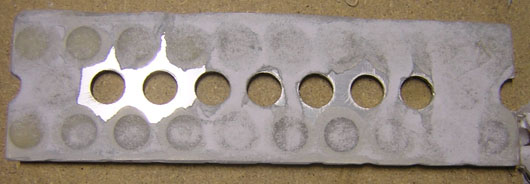

In lack of proper filler I stuffed the unneeded holes with two part epoxy and let it dry overnight

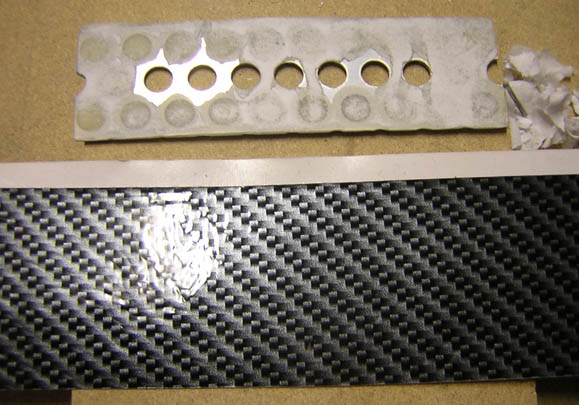

Cutting out a piece of the vinyl for application onto the mesh

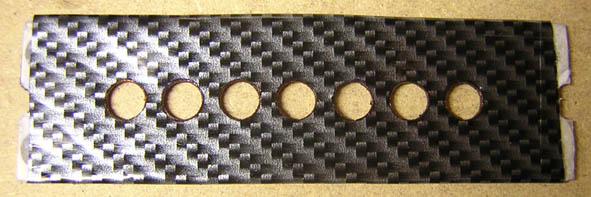

After gluing the vinyl onto the mesh and cutting out the 7 holes for the lights (7 as in K E I S A R I)


How the mesh is going to look when mounted (Red light is going to shine through the pump and hopefully it will look super tasty )


Well that's it for this small update but stay tuned for more

you should get some clear projector paper and print out K E I S A R I on it, and then put each letter in a hole, and they will be back lit by the red pump light. It would look crazy sweet, I can't wait to see the other bay covers. keep it up man

thx lafez. That is actually a really sweet idea. I'm going to look into that.

Arrggghhh my friends it's time for another update

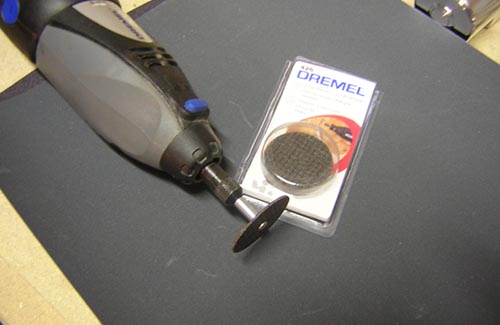

First of all I had to go some extra carbon reinforced cutting discs for my dremel because I broke all the regular ones I had. At the same time I also picked up some different kinds of sandpaper

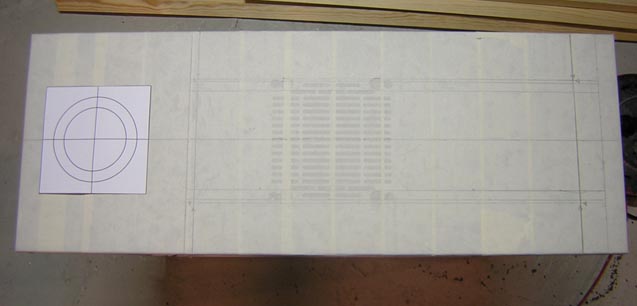

I started working on the case itself. First cut measured out

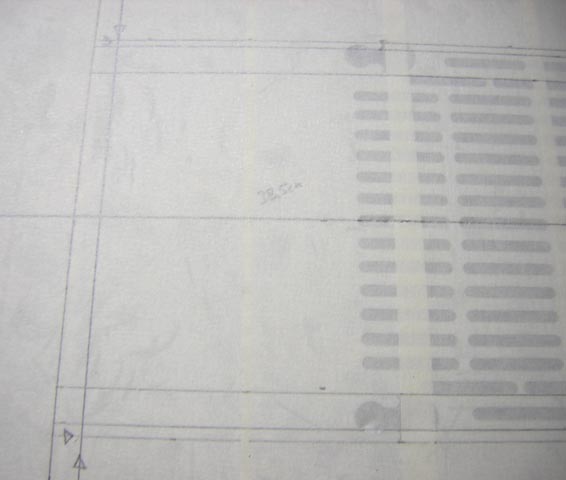

It's kinda hard to see the lines but here is a closeup of the markup

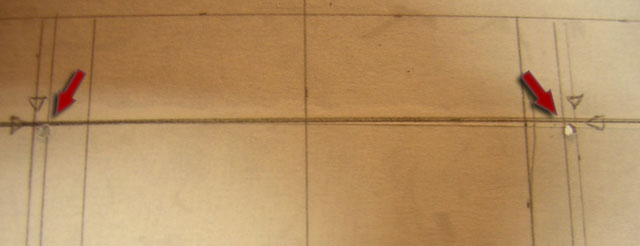

Pilotholes drilled in each corner

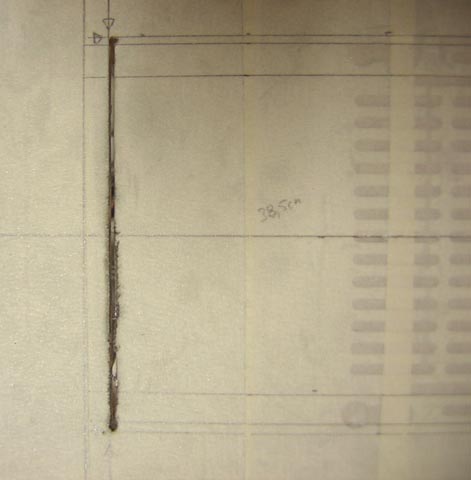

First cut (sweating by the thought of ruining a very expensive case)

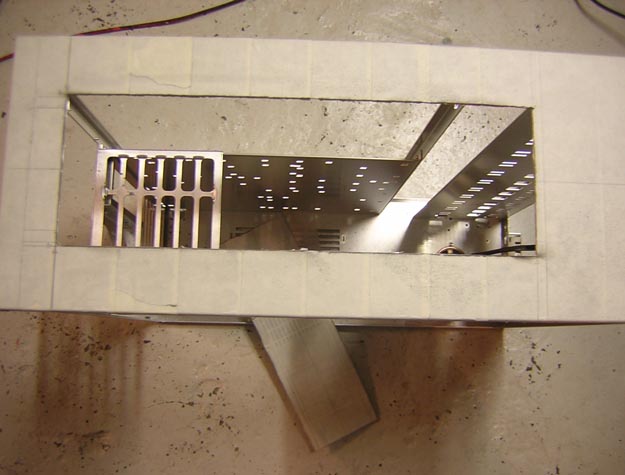

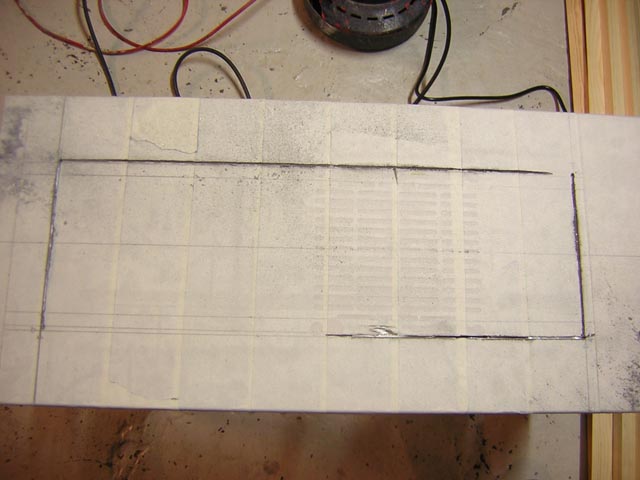

Almost finished cutting the whole thing


Radiator hole cut

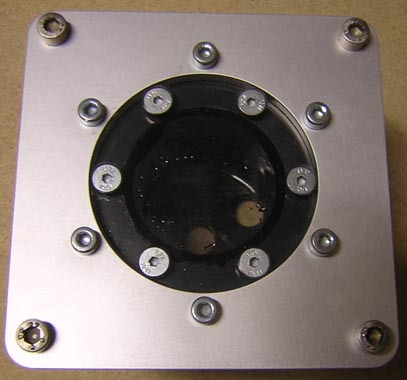

I also ripped the Fass-O-Matic out of my old case (it's still kinda wet because I just emptied it)

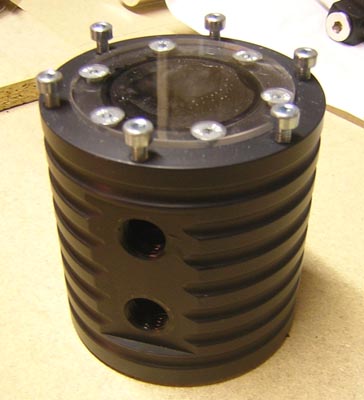

Without the faceplate

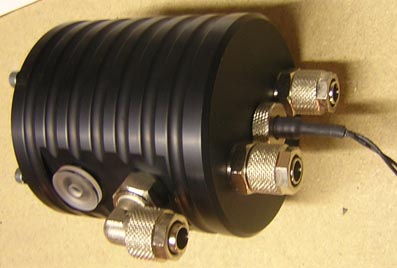

Fittings, thermometer and LED holder mounted

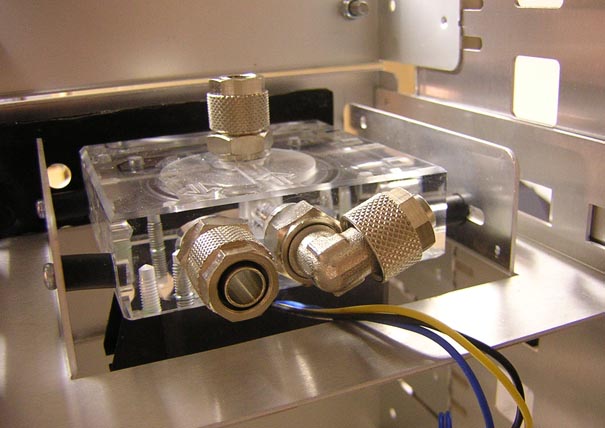

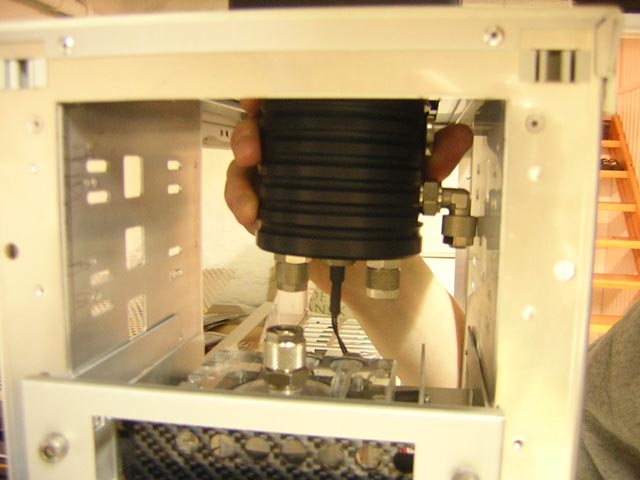

Testfitting the Fass-O-Matic before deciding where the hole in the case should be


As you can see in the picture above it's a very tight fit so I had to change the fittings on the pump to make it possible for the two to connect


Time for the car grill mesh to be mauled properly. Cutting out a suiting piece


I forgot to take some pictures of the bending process But it simply involves using a vice or a woodbench and the slowly bending it with your hands into the desired shape (after clamping it down obviously). To finish it off and get some straight angles use a rubber hammer or a regular hammer and a piece of wood in between.

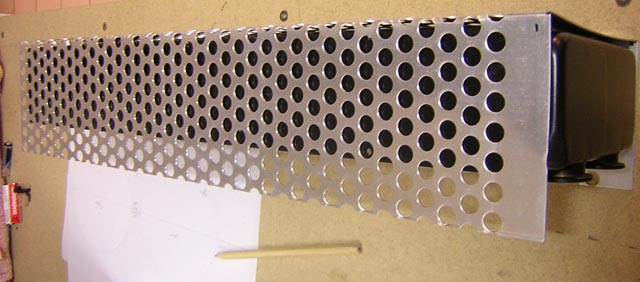

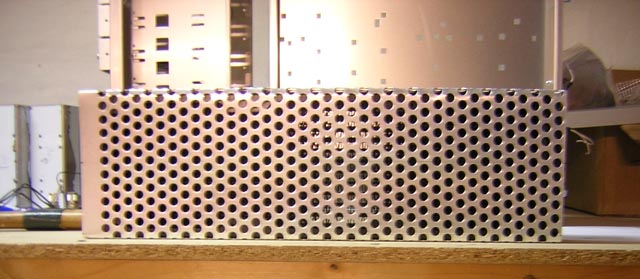

The almost finished product (still needs some fine tuning). As you can see the grill sticks out further than the rad but that's because the fans aren't mounted yet. Just wait it's going to look fiiiine!


I was kinda worried how this would look compared to a store bought fan grill but I must say that I'm more than pleased with the looks of it now and have no regrets whatsoever

Front view (sorry for the blur but my camera ran out of power)

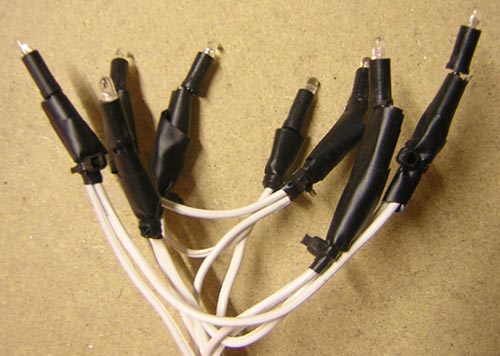

Before I end this update I just wanted to show that I've finished soldering the LED's for the front power button/status LED faceplate. They just need to be sleeved and then they're done


Until nxt time thx for reading.
Over and out captain!

sweet log coming here, like what you are doing and think the letters on plastic behind those holes would be sweet!

glad I could offer some usefull ideas, that makes me feel all fuzzy inside... Well, your work is amazing, I love the look of metal. Fan grill looks awsome, dont second guess it, and keep up the sweet work, im liking it a lot. Mod on!

Update time from Dr. Slow

Hi everybody! I know it has been a while since I've update and I'm sorry for that. I've been off snowboarding and I've gotten a new job at IMTLabs

(www.spleak.com) so I've had a lot of stuff to do, hence the lack of updates.

Well I'm going to make that up to you now.

On to the update

Markup for the reservoir cut


Cutting the hole with my trusty Dremel
(Patience my young padowan, patience)


Hole cut


Top view after filing the hole


Closeup of the reservoir cut


Top view with screws testmounted


I've also had to drill a hole in the back of the case to be able to access the radiator bleed screw


ok, that's it. Update again in a short while

thx for reading

WOW!!!! Sweeeeeeet Work On The Project
